SLOT ANCHOR PIN BUSH

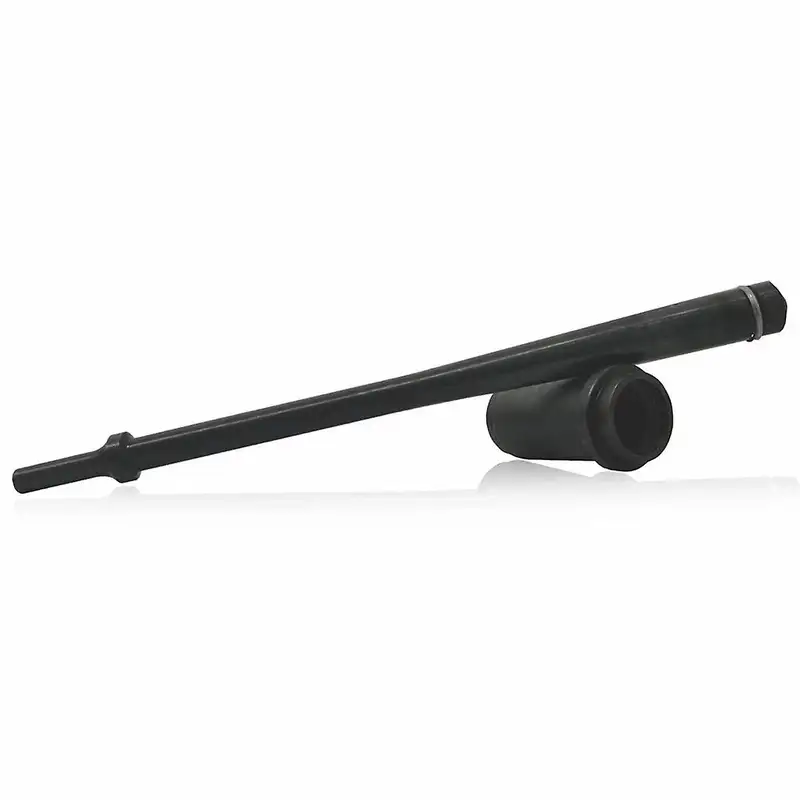

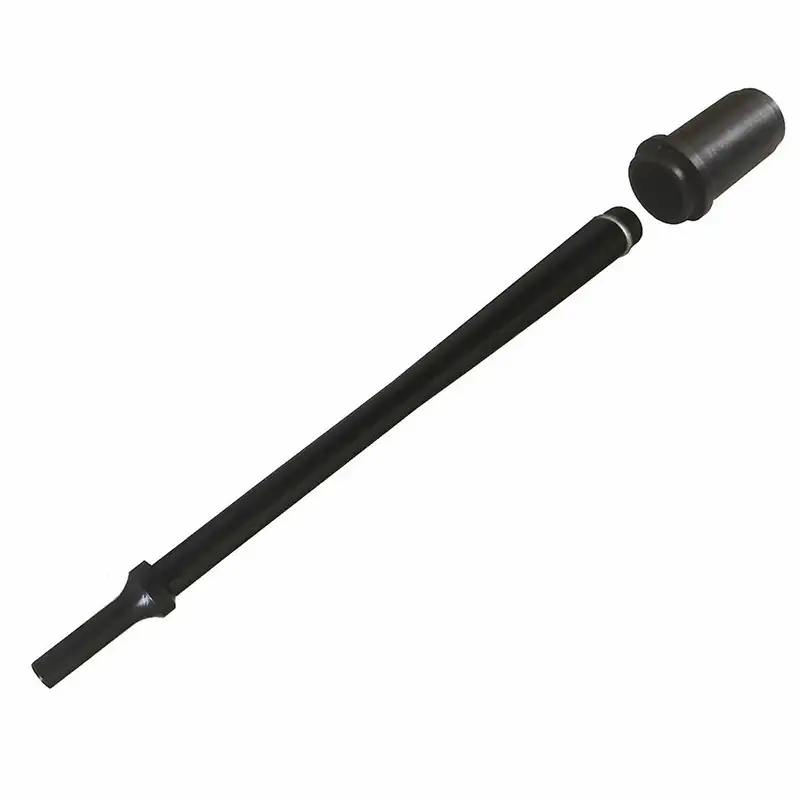

Components:

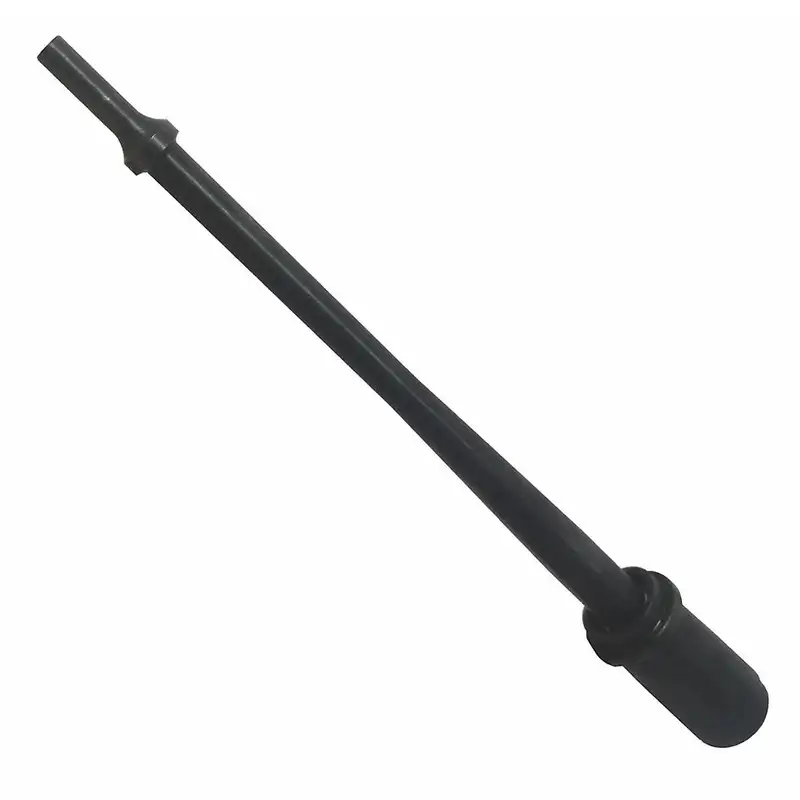

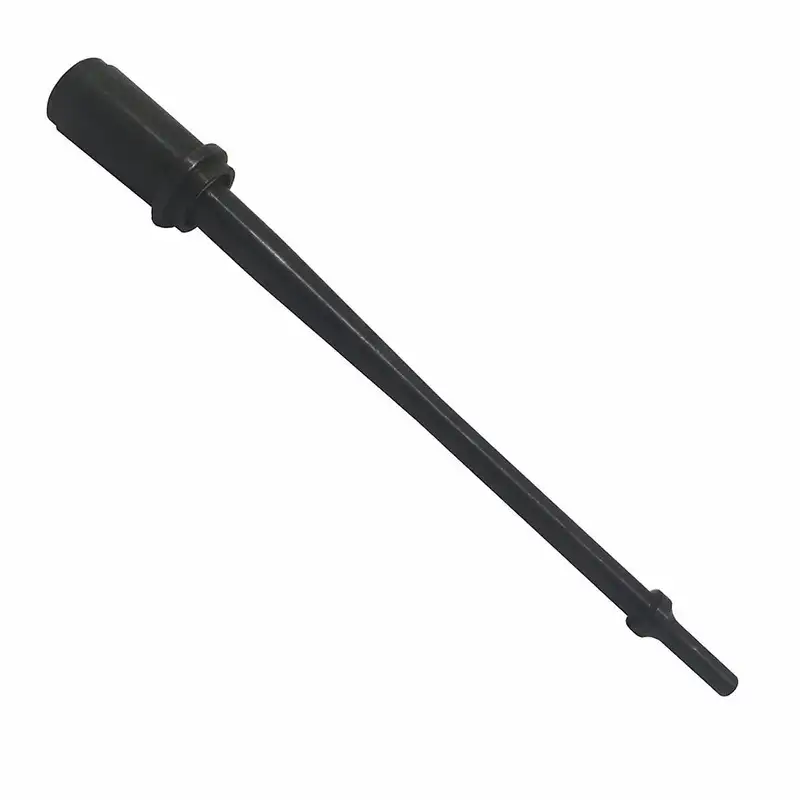

1. Anchor Pin (bottom):

   • A long, cylindrical black metal rod with precision-machined shoulders.

   • Used to secure brake shoes within the brake system.

   • One end is shaped to fit into the bush and the other is for mounting or retaining.

2. Bushing (Bush) (top):

   • A short cylindrical sleeve, also in black.

   • It has a smooth inner bore and no visible slot, indicating it is a “W/O Slot” (without slot) type.

   • Provides a friction-reducing surface for the anchor pin to rotate or pivot within.

🚛 Application:

• Commonly used in drum brake assemblies on heavy-duty trucks and trailers.

• Helps maintain alignment and reduce wear between the brake shoe and camshaft or backing plate.

This set is crucial for ensuring smooth braking operation and durability of the brake system.
